UVA LIDKÖPING is Sweden`s largest machine tool manufacturer. We specialise in the manufacture of precision grinding systems.
The UVA LIDKÖPING DG Platform is made in five different models. They are all equipped with two vertical grinding wheels for grinding of two parallel surfaces simultaneously.
Our goal is to give you accuracy, efficiency and reliability through our products, our process knowledge and development, customer support and service. Through close cooperation with end-users we ensure a correct and profitable solution for you, the customer.

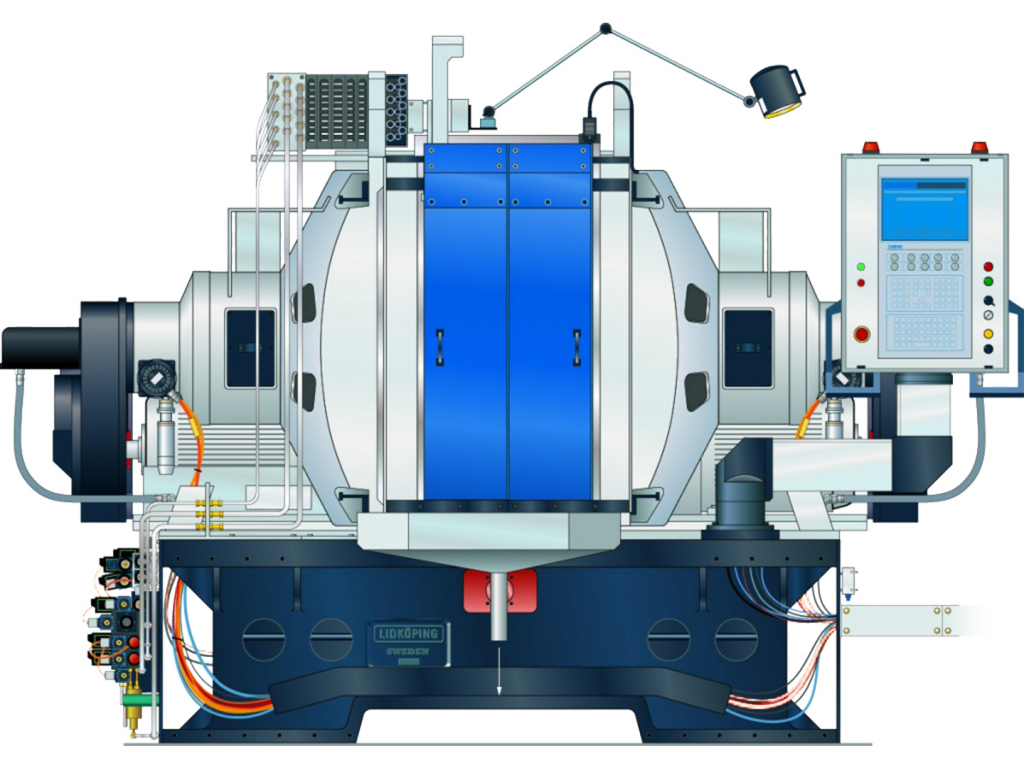

Double Disc Face Grinding Machine
By ensuring flat and parallel surfaces, the DG grinding machines enhances the accuracy of subsequent machining operations. Perfect for production line integrations, these machines serves small or large production lots equally well.
Chucking and loading principles
For plunge grinding applications the work piece is placed via chute between three rollers and is driven to rotate by two of them. Fast change-over times below 10 minutes can be achieved. For through-feed applications various types of rotary wheel loaders are used.
The two grinding spindles are belt driven by motors from 7,5 kW to 33 kW, with fixed or variable speed and selectable direction of rotation. Coolant supply through the spindles ensures efficient cooling.
The two hydrostatic slides are run by servo motors and ball screws. The precision ground ball screw is designed by KMT Precision Grinding AB. Positioning accuracy 0,1 μm.
Dressing units are mounted directly on the box frames. The DG300/400/800 are equipped with multipoint diamond dressers and the DG500/600/700 are equipped with driven diamond roller dressers.
Graphical user interface provides user-friendly controls and integrated program generator, IPG. The control system is Siemens 840D sl (Solution Line).
The SINUMERIK 840D solution line is a distributed, scalable, open and inter-connecting control system that offers a wide range of functions. This flexible, universal CNC can be used for up to 31 axes.
