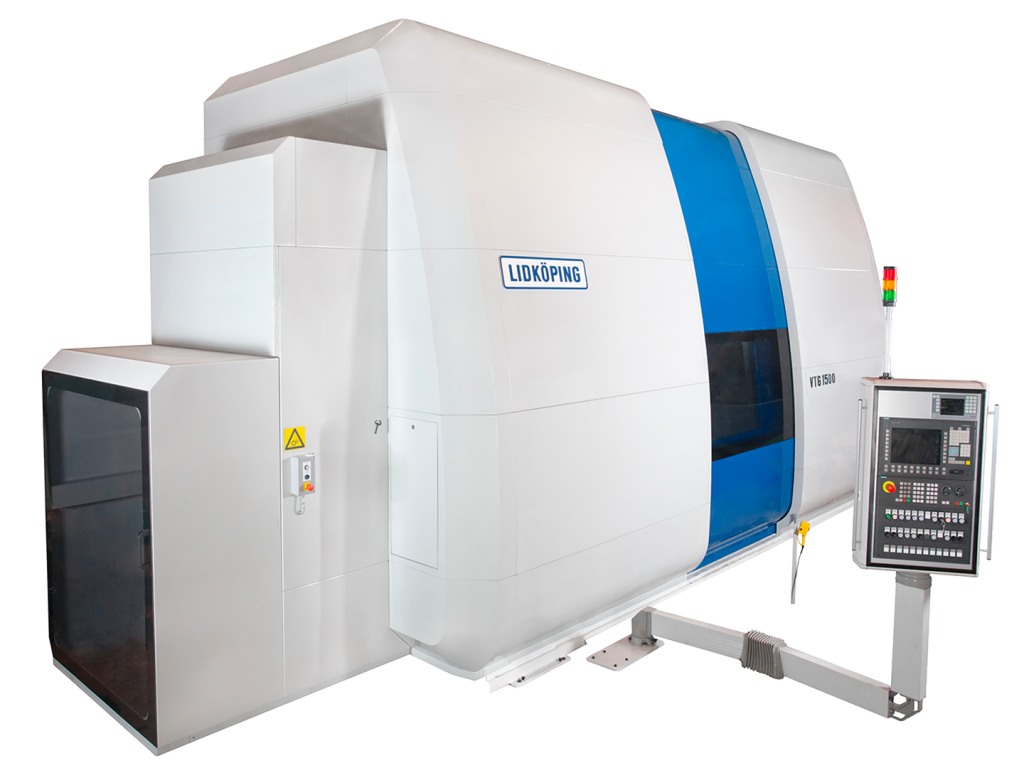

LIDKÖPING VTG 1500
Internal hard turning External hard turning vertical operation, Internal hard turning External grinding vertical operation, Internal grinding External hard turning in vertical operation, Face grinding vertical grinding operation, Simultaneos Internal External vertical grinding grinder
|Work piece dimension - ID||440 - 1450 mm|
|Work piece dimension - OD||500 - 1500 mm|
|Work piece dimension - loading width||500 mm|
|Work piece dimension - grinding width||500 mm|
|Machine weight||62000 kg|
KMT Precision Grinding is Sweden`s largest machine tool manufacturer. We specialise in the manufacture of precision grinding systems.
The LIDKÖPING KMT Vertical grinding machines gives the user high output quality and can be set up for Internal, External hard turning and grinding operations.
Our goal is to give accuracy, efficiency and reliability through our products, our process knowledge and development, customer support and service. Through close cooperation with end-users, we ensure a correct and profitable solution for you, the customer.
Hard turning and grinding, in sequence or simultaneously by two rams
Two rams: Mounted on a two columns, one single beam design.
Machine base: Made in cast iron.
With active close loop cooling system.
Work head: Fixed position work head spindle/worktable (C2)
Work head spindle/worktable
KMT designed hydrostatic bearings for both axial and radial support.
Rotary magnetic worktable diameter 1500 mm.
Magnetic chuck for centric work piece chucking.
Max 65 rpm, 13 kNm (VTG4000).
Max 225 rpm, 5 kNm (VTG1500)
Direct driven by a torque motor, 20 kW, step less variable speed.
Max load on worktable 3000 kg.
Grinding System / Left Ram
Vertical left (W1) & Horizontal Left (U1) KMT Lidköping`s hydrostatic design. Linear motor driven hydrostatic slide
Vertical stroke: 860 mm / Hydraulic brake.
Horizontal stroke: 2460 mm.
Max acceleration: 1 m/sec 2.
Max speed: 1 m/s.
Resolution: 0,01mm. The slides are working independently of each other.
Hard turning system / Right Ram
Vertical right (x1) & Horizontal right (Z1). KMT Lidköpings hydrostatic design. Linear motor driven hydrostatic slide.
Vertical stroke: 850 mm / Hydraulic brake.
Horizontal stroke: 1960 mm.
Max aacceleration: 1 m/sec.
Max speed: 1 m/s
Resolution: 0.01μm. The slides are working independently of each other.
External/Internal grinding spindle
HF grinding spindle with support GMN TSE 260C-3500/40. 40 kW. Speed 1900-3500 rpm. Electro-mechanical balancing and A-E (gap) by Marposs P7.
Swiveling of grinding spindle, to be quoted on request
Automatic grinding wheel change, OD/ID wheels.
Wheel diameter 610, OD/ID
Wheel width 150 mm, OD/ID
Max 60 m/s, variable.
Integrated Coolant nozzles for OD & ID
Dressing unit for external and internal grinding wheels.
The dressing unit is fixed to the machine base.
Single point dresser
NC disc dresser
Full profile dresser
Automatic tool changer: 5x/12x
Tool holder: Sandvik Capto C5 or acc. to customer demand.
Tool holder material: Densimet
Measurments: Including probe for tool control. Tool monitoring system.
Graphical user interface provides user-friendly controls and integrated program generator, IPG. The control system is Siemens 840D sl (Solution Line).
The SINUMERIK 840D solution line is a distributed, scalable, open and inter-connecting control system that offers a wide range of functions. This flexible, universal CNC can be used for up to 31 axes.
